特徴

仕様

Application: Laser Marking

Working Accuracy: 0.01

Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Type: Fiber Laser

Condition: New

CNC or Not: Yes

Cooling Mode: Air Cooling

Control Software: EzCad

Laser Source Brand: Lianpin/Max/Raycus

Weight (KG): 121 KG

Key Selling Points: Automatic

Warranty: 3 years

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Marking Area: 110*110mm/150*150mm/200*200mm/300*300mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 2-3years

Core Components: Pressure vessel, Motor, Bearing, Gear, Gearbox, Engine, PLC

Machine name: fiber laser printer

Frequency of pulse: 20-100KHz

Working Temperature: 0-40 â„ƒ

Minimum Line Width: 0.03 mm

Minimum Fonts size: 0.3mm

repeatability: 0.01 mm

Cooling: Windy

Maximum Power dissipation: 260W

Wavelength: 1064nm

Work life: 100,000.00hours

証明: ce

After-sales Service Provided: Online support, Video technical support

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

Showroom Location: None

Marketing Type: New Product 2020

基本情報

証明: ce

お支払配送条件

Packaging Details: normal package: wooden box

製品の説明

Product Description

Best quality 20w 30w 50w 70w 100w fiber laser marking and cutting machine for jewelry necklace bracelet ring fiber laser printer

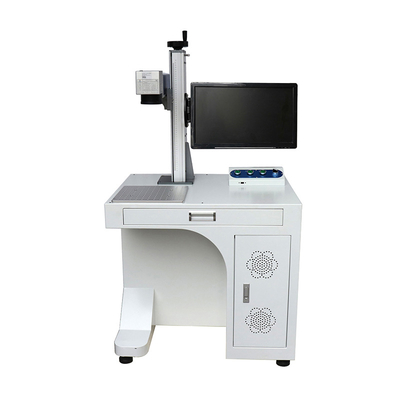

Main Features--Cabinet type fiber laser printer

♠ Applicable to metal materials and part of non-metal materials, like plastic etc

♠ Cabinet type, long adjusting focal length, can get bigger marking area if laser power is suitable，and with support hanger， that can be used to hang the computer

♠ Machine is big inside space, with air cooling, good for heat dissipation, long time working will not affect machine quality

♠ Sino high-speed galvanometer scanner, with double red light pointers for focusing

♠ Brand F-Theta field lens, 110*110mm, 150*150mm, 200*200mm, 300*300m working area are optional

♠ Brand laser source, full power and stable quality, Lianpin, Max, Raycus, JPT, and IPG brand are optional

Parameters
Machine name	Cabinet type fiber laser printer
Machine model	JFT-LMD
Laser source	Lianpin/ Max/ Raycus/ JPT/ IPG
Laser power	20W/30W/50W/70W/100W
Working area	110110/150150/200200/300300mm
Working speed	≤7000mm/s
Wavelength	1064nm
Min line width	0.03mm
Min character	0.1mm
Repeat precision	±0.01mm
Marking frequency	0-30KHz
Marking depth	≤0.3mm (depend on material)
Cooling type	Air cooling
Applicable materials	Metal and part of non-metal materials
Work temperature	0℃-40℃
Input voltage	110V/220V
Warranty	2-3 years
Outer size	6780145cm
Packing size	9967158cm
Packing weight	121kgs

Samples Show

Detailed Images

1. Cabinet type, bigger working area

Cabinet type, long adjusting focal length, can get bigger marking area if laser power is suitable，and with support hanger， that
can be used to hang the computer

2.High quality laser source

Built-in brand high quality fiber laser source,with fine, full and stable laser source. Lianpin, Max, Raycus, JPT, and IPG brand are optional, the work life is 100,000.00 hours

3.Brand galvanometer scanner

Sino high-speed galvanometer scanner, can get fast, stable, and clear scanning effect

4.Brand field lens

Brand F-Theta field lens, can get accurate working size, 110*110mm, 150*150mm, 200*200mm, 300*300mm working area are optional

5.double red light pointers

Applied with double red light pointers for focusing, three points converge into a single point, which is the focus, make the operation is easier

Optional parts

Rotary axis

When annulusly engraving on cylindric materials, like engraving on finger ring, bracelet, wine glass etc, rotary axis is required

Our Service

Pre-sale service

1. 24 hours online inquiry and consulting supporting. 2. Providing the most professional advice for choosing the most suitable and economic machines

3.Free proofing

After-sales service

1. Providing instructional videos and English user manual for guiding to install and operate the machines 2. Engineers guide to operate the mahcines by remote service 3. 2-3 years free warranty for machine quality and technical service

FAQ

1. What if you don't know how to use the machine?

We have a whole set of teaching videos, start with a zero basis, also can provide training
through remote system, WeChat video, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn

2. How about the warranty?

The machine is directly produced from our factory, you can enjoy the quality of the original

factory, and lifelong maintenance, free warranty is 2-3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code

3. How to repair?

Please contact the salesman or after-sales engineer first if there is any problem when using

the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
